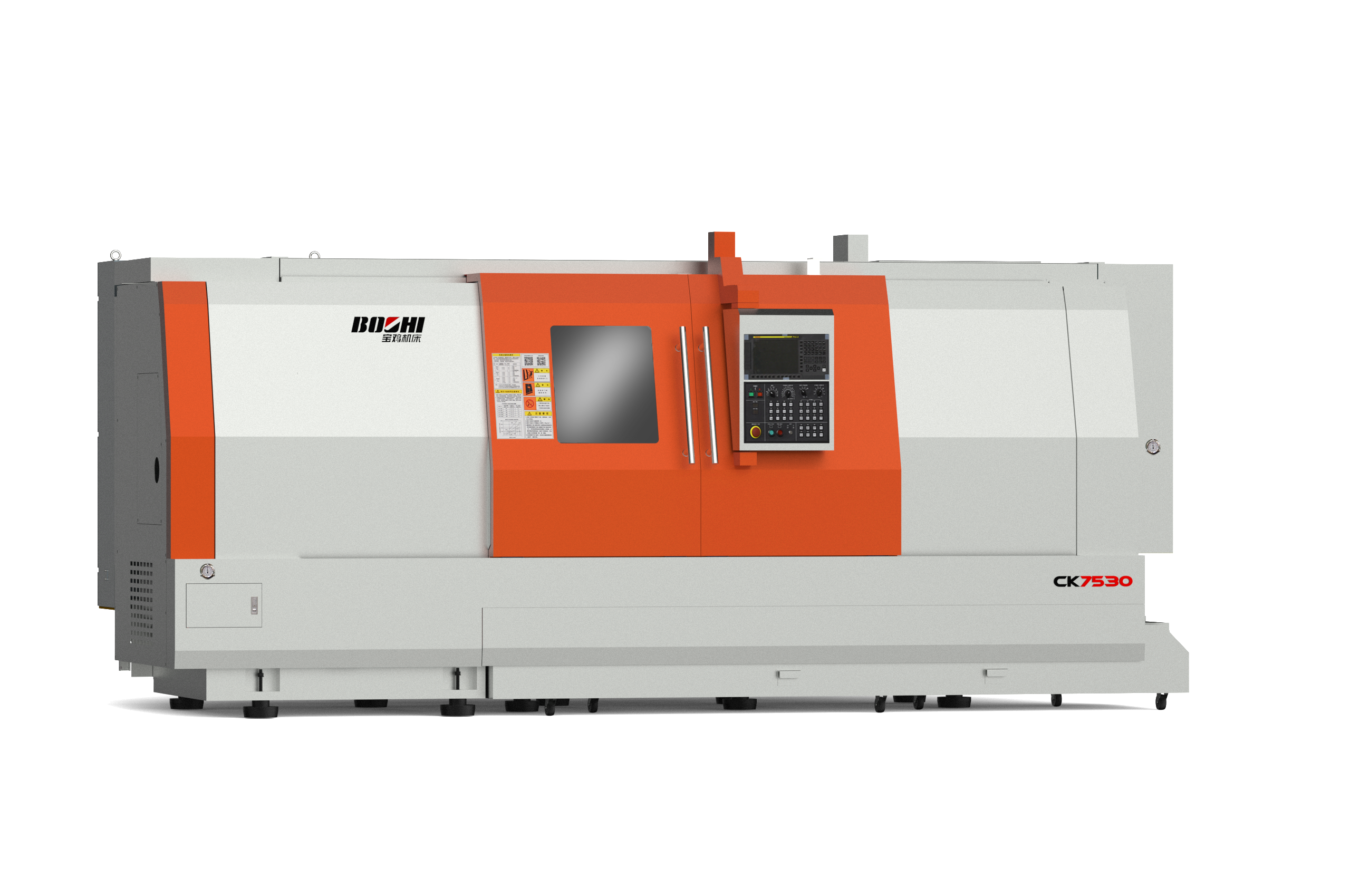

CK7530 series CNC lathes watch video
Product Description:

CK7530 series CNC lathes are advanced in strength, dynamic and static stiffness, mechanical structure of main components, protective cooling and safety design. This series of machine tools with high strength cast iron casting, lathe bed base integral structure, inclined guide rail, high precision hole type spindle structure, design of vibration resistance and its type ac spindle motor, main shaft bearing and feed screw and bearing such as key components adopt world famous brand products, equipped with multi-location turret head, can be continuous indexing, nearby tool change, transfer of high precision, fast indexing. The machine tools are equipped with CNC systems from Japan FANUC 0I-TF (1), Germany Siemens, etc., as well as other famous brands at home and abroad. The hydraulic parts, lubrication units and chucks of the machine tools are all high-quality products at home and abroad.



The machine has novel appearance design, easy operation of the panel, fully enclosed protection, especially obvious effect of preventing three leaks. Combined with its characteristics of high power, high precision and high performance, this series of machine tools is undoubtedly the most powerful product in the same type.


Technical Specifications:



Item

Unit

Specifications

CK7530.800

CK7530F

CK7530

CK7530.2000

CK7530.3000

Capacity

Max swing over bed

mm

φ670/φ470

Max workpiece length

mm

800

800

1500

2000

3000

Max turning diameter

mm

φ600/(六鑫液壓刀架φ550)

Max bar diameter

mm

φ90

Spindle

Hydraulic chuck diameter

mm

φ305

Spindle nose



A2-8(GB5900.1)

Spindle thru-hole

mm

φ105

Spindle speed

r/min

25--2500

L:12-830  H:50-2500(帶減速器)

Spindle speed

kW

22/30; 22/26(帶減速器)

Tailstock

Quill diameter/travel

mm

φ110/150

Center taper

MT No.

6/5

Carriage

Slant degree

DEG

60°側(cè)排

45°后排

60°側(cè)排

60°側(cè)排

60°側(cè)排

X/Z-axis travel

mm

325/880

325/880

325/1550

325/2050

325/3100

X/Z-axis rapid traverse

m/min

12/16

12/12

Turret

Number of stations/ revolving tool stations



8/12

Tool section (turning/boring)

mm

32×32/φ50

Others

Power source

kVA

60

Dimension(L×W×H)

mm

3820×2100×2152

3900×2160×2300

4822×2130×2300

5320×2130×2180

6770×2130×2180

Gross weight

kg

8330

8600

9730

12000

17000
