Product Description:

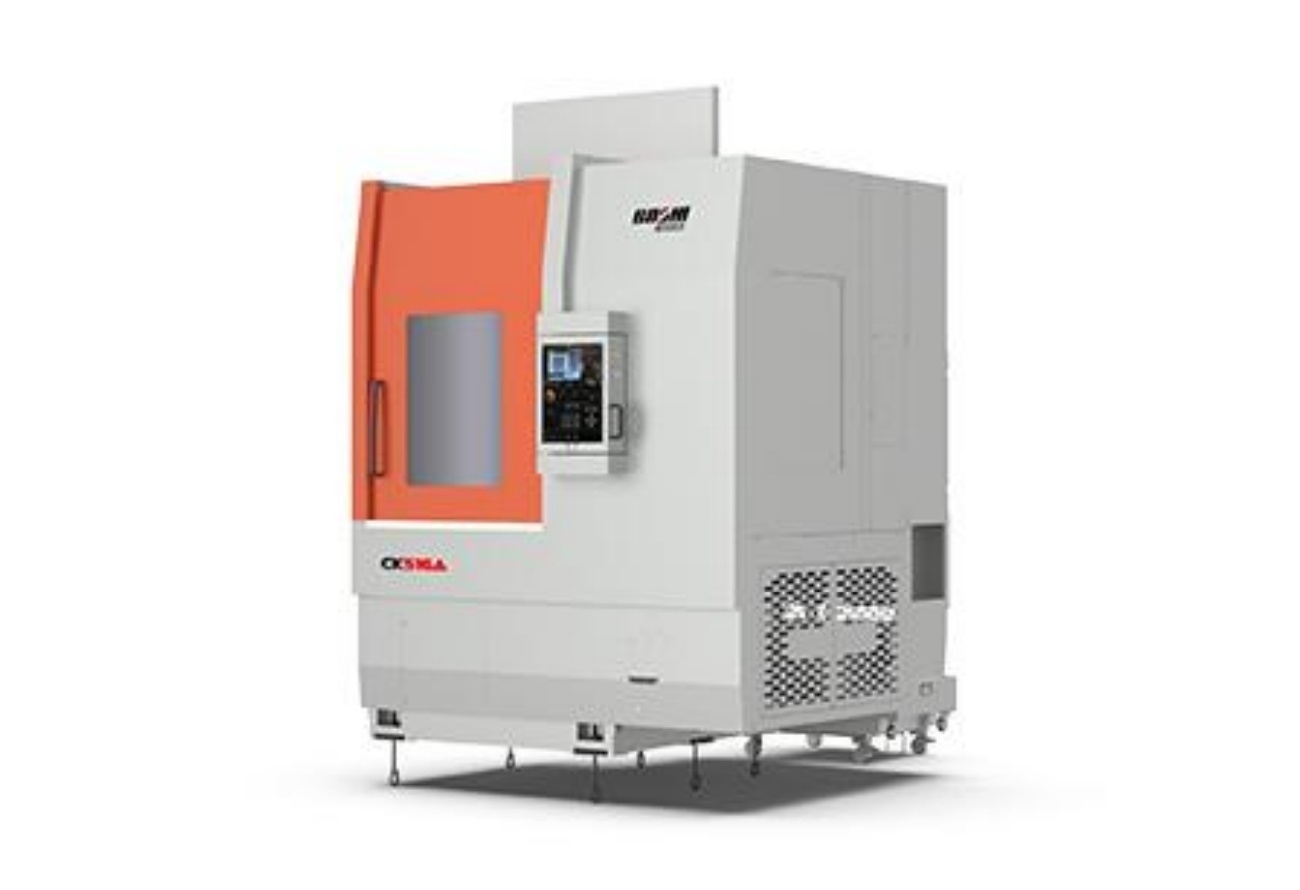

CX516 is a high-efficiency vertical turning center with three-axis linkage function, seamless integration of turning and milling modes, direct-drive structure of turning and milling spindles,equipped with 40-station tool changer, which can be used for precision and high-efficiency turning and milling composite machining of disk and sleeve parts, and is widely used in the manufacturing industries of electronics, ships, automobiles, high-speed railways, medical equipments, molds and dies, and IT. The machine tool can be equipped with online inspection, high-pressure chipbreaking and other functions, which can be used for single-machine machining or multi-machine linkage to realize automative operation


Technical Specifications:

Items

unit

specifications

Capacity







Max. swing diameter mm

mm

Φ800

Max. turning diameter

mm

Φ800

Max. milling diameter

mm

Φ800

Max. turning length

mm

500

Spindle









Hydraulic Chuck Size



21 "solid

Max speed

r/min

1500

C-axis minimum resolution

°

0.001

Max speed of Milling Spindle

r/min

15000

Milling Spindle Taper hole



BT40

feed





X/Z-axis travel

mm

1020/650

X/Z-axis rapid feed speed

m/min

20

Servo motor torque (X/Z)

Nm

25/25

Tool magazine







Tool magazine capacity

hold

40

Max. tools weight

kg

8

Max. tools size

mm

Φ75×250

Turning tool shank type



BBT40 (double-sided contact)

other







source

kVA

120

voltage

V

AC380V±10%

Volume (length x width x height)

mm

5267×3310×3875

weight

Kg

11000
